Requirements Analysis

• Backend Management System
• Product Management
  • Product List
  • Product Categories
  • Brand Management
  • Brand Categories
• Order Management
  • Order List
• User Information Management
  • User List
  • User Addresses
  • User Messages
• Carousel Management
• E-commerce System
• Login Page
• Homepage
  • Product Search
  • Product Category Navigation
  • Carousel Display
  • Recommended Product Display
• Product Detail Page
  • Product Image Display
  • Product Description
  • Product Specification Selection
  • Add to Cart
• Shopping Cart
  • Product List
  • Quantity Adjustment
  • Delete Product
  • Checkout Function
• User Center
  • Order Center
  • My Orders
  • Shipping Address Management
  • User Information
  • User Profile Modification
  • My Favorites
  • My Messages

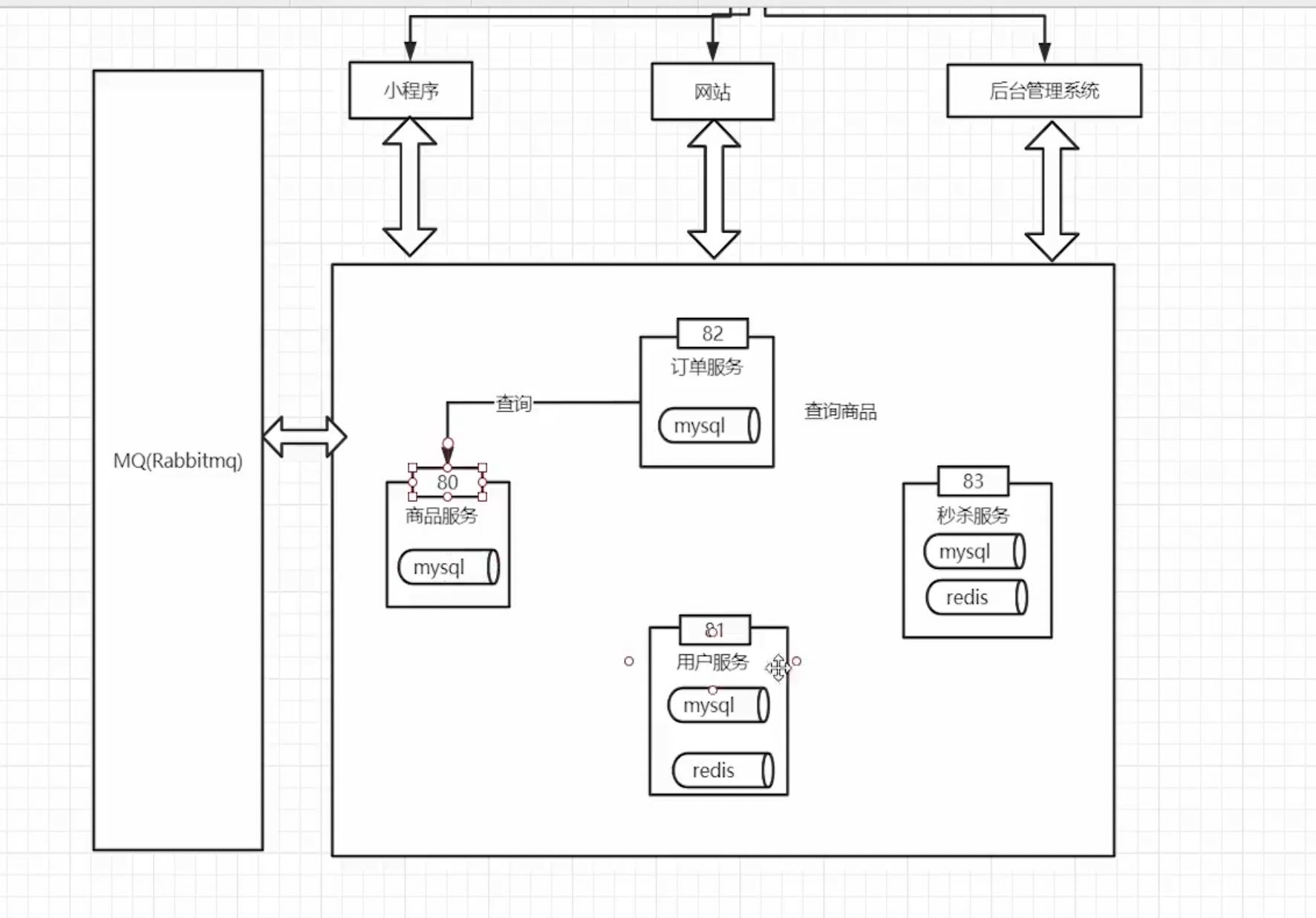

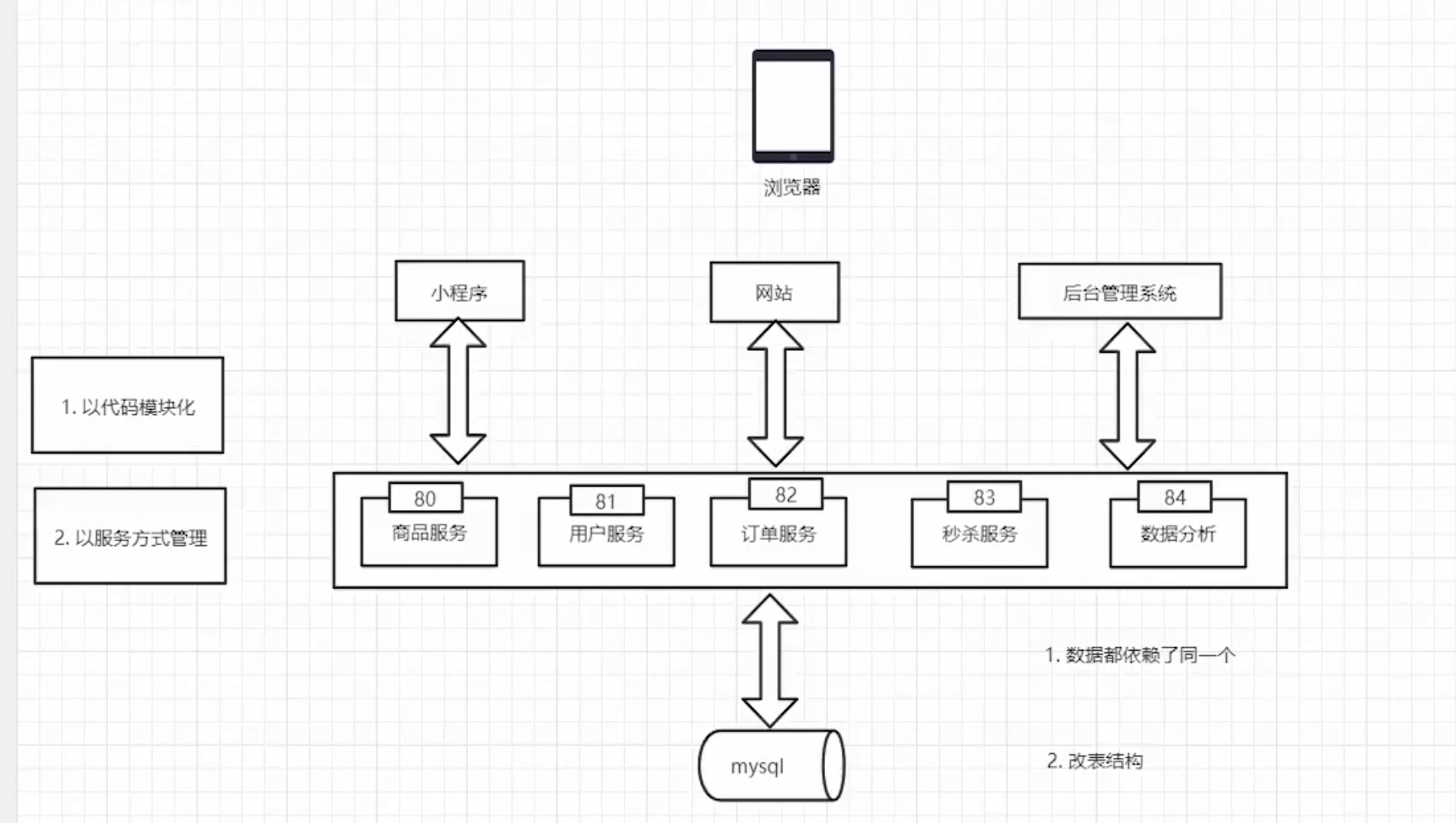

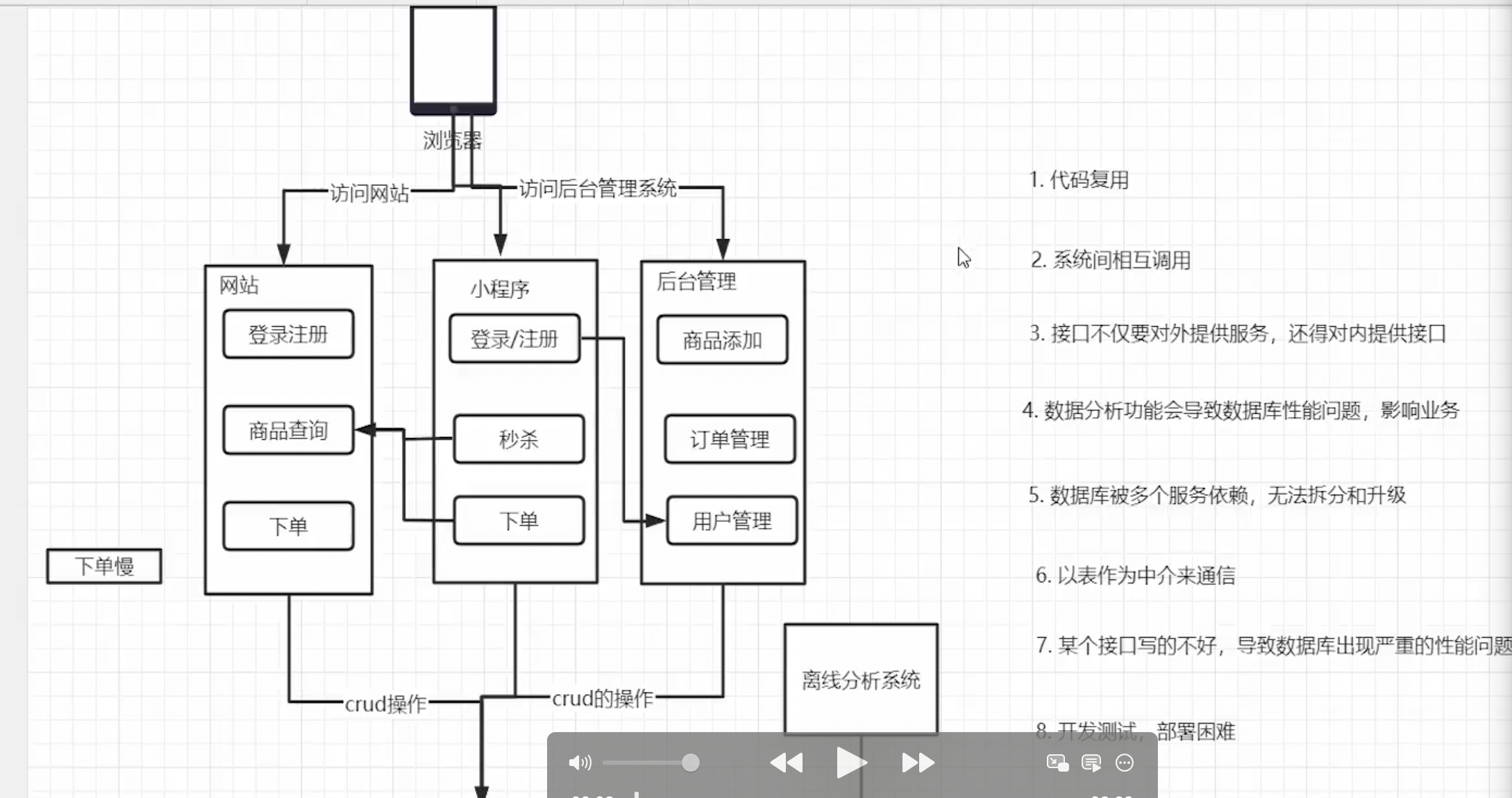

Evolution from Monolithic Applications to Microservices

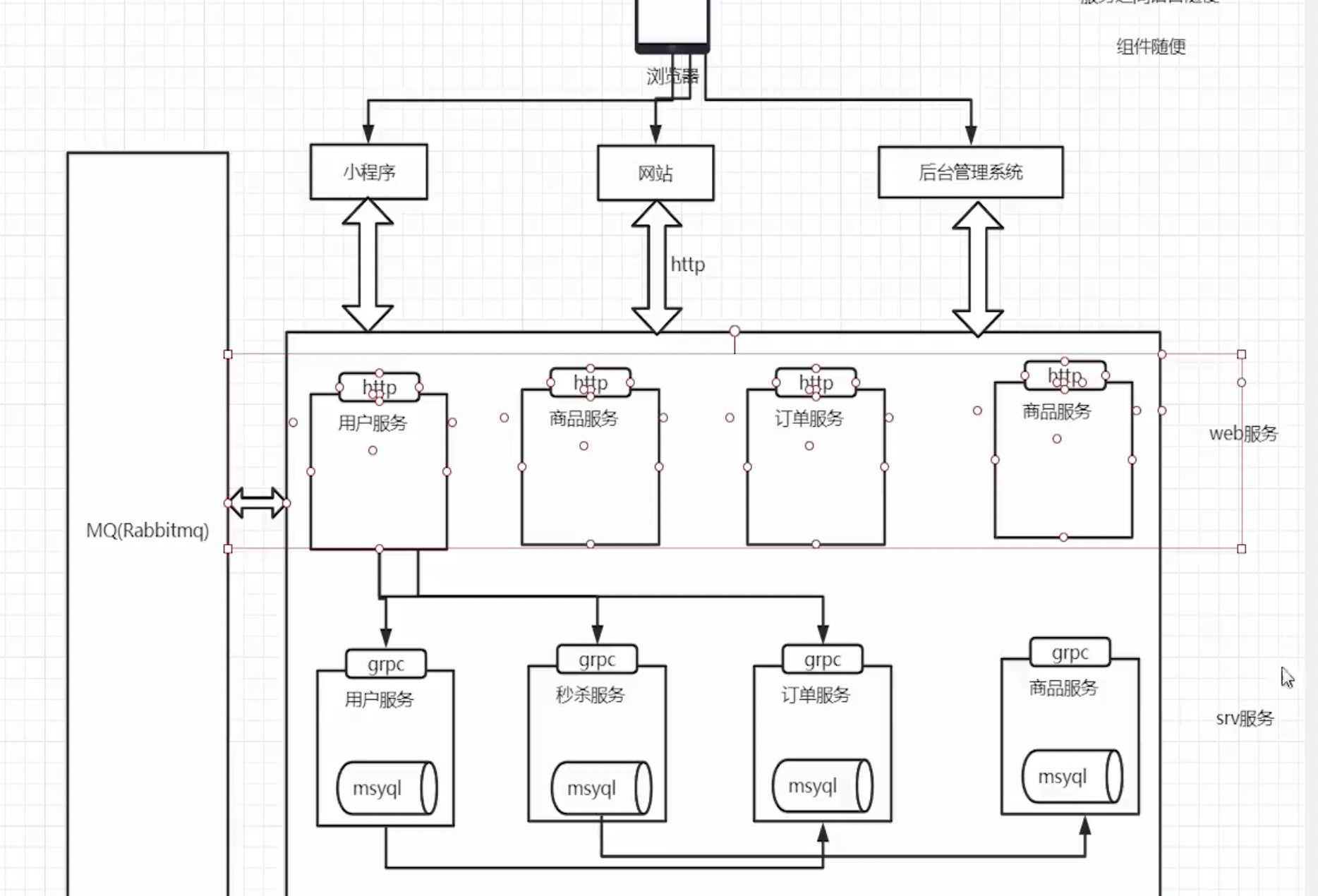

Layered Microservice Architecture
Web Service
SRV Service

• Registry Center, Service Discovery, Configuration Center, Link Tracing
• API Gateway (Routing, Service Discovery, Authentication, Circuit Breaking, IP Black/Whitelist, Load Balancing)

API Management

API management documentation tools for front-end and back-end separated systems: drf swagger, yapi (I think apifox is better)

git clone https://github.com/Ryan-Miao/docker-yapi.git
cd docker-yapi
docker-compose up

ORM Learning

1. What is ORM

ORM stands for Object Relational Mapping. Its main purpose in programming is to map object-oriented concepts to database table concepts. For example, if I define an object, it corresponds to a table, and an instance of this object corresponds to a record in that table.

2. Common ORMs

• GORM
• Ent
• SQLX
• XORM
• Gendry

3. Pros and Cons of ORM

Pros

1. Improves development efficiency.
2. Shields SQL details, automatically mapping fields and attributes between entity objects and database tables; no direct SQL coding is required.
3. Masks differences between various databases.

Cons

1. ORM sacrifices program execution efficiency and can lead to fixed thinking patterns.
2. Over-reliance on ORM can lead to insufficient understanding of SQL.
3. Heavy reliance on a specific ORM makes switching to other ORMs costly.

4. How to Correctly View the Relationship Between ORM and SQL

1. SQL as primary, ORM as supplementary.
2. The main purpose of ORM is to increase code maintainability and development efficiency.

GORM Getting Started Tutorial

https://gorm.io/docs/

package main

import (
 "fmt"
 "gorm.io/gorm/logger"
 "log"
 "os"
 "time"

 "github.com/bwmarrin/snowflake"
 "gopkg.in/yaml.v3"
 "gorm.io/driver/mysql"
 "gorm.io/gorm"
)

type Config struct {
 Database struct {
  User     string `yaml:"user"`
  Password string `yaml:"password"`
  Host     string `yaml:"host"`
  Port     int    `yaml:"port"`
  Name     string `yaml:"name"`
 } `yaml:"database"`
}

var node *snowflake.Node

func init() {
 var err error
 // 初始化一个 Node (你可以根据不同服务实例，设置不同的node number)
 node, err = snowflake.NewNode(1)
 if err != nil {
  panic(err)
 }
}

// Product模型
type Product struct {
 Code      string `gorm:"primaryKey"`
 Price     uint
 CreatedAt time.Time
 UpdatedAt time.Time
 DeletedAt gorm.DeletedAt `gorm:"index"`
}

// 插入前自动生成Code
func (p *Product) BeforeCreate(tx *gorm.DB) (err error) {
 if p.Code == "" {
  p.Code = node.Generate().String()
 }
 return
}

func main() {
 // 读取配置
 cfg := loadConfig("config/db/db.yaml")

 // URL编码密码
 //encodedPassword := url.QueryEscape(cfg.Database.Password)
 //fmt.Println(encodedPassword)

 // 拼接DSN
 dsn := fmt.Sprintf(
  "%s:%s@tcp(%s:%d)/%s?charset=utf8mb4&parseTime=True&loc=Local",
  cfg.Database.User,
  cfg.Database.Password,
  cfg.Database.Host,
  cfg.Database.Port,
  cfg.Database.Name,
 )
 // 设置打印日志
 newLogger := logger.New(
  log.New(os.Stdout, "rn", log.LstdFlags), // io writer
  logger.Config{
   SlowThreshold: time.Second * 10,
   LogLevel:      logger.Info,
   Colorful:      true,
  },
 )

 // 连接数据库
 db, err := gorm.Open(mysql.Open(dsn), &gorm.Config{
  Logger: newLogger,
 })
 if err != nil {
  log.Fatal("failed to connect database:", err)
 }
 // 设置全局的logger,这个logger在我们执行每个sql语句时都会打印出来

 fmt.Println("数据库连接成功！", db)
 // 定义表结构，将表结构直接生成对应的表 自动建表
 //db.AutoMigrate(&Product{})
 // 创建一条记录测试
 //product := Product{Price: 100}
 //result := db.Create(&product)
 //if result.Error != nil {
 // panic(result.Error)
 //}
 //
 //fmt.Println("Product Created:", product)
 // read
 var productFind Product
 result := db.First(&productFind, "code = ?", "1916479347485577216")
 if result.Error != nil {
  panic(result.Error)
 }
 fmt.Println("ProductFind Read:", productFind)
 // update
 productFind.Price = 300
 result = db.Save(&productFind)
 // delete 逻辑删除
 db.Delete(&productFind, 1)
}

func loadConfig(path string) Config {
 data, err := os.ReadFile(path)
 if err != nil {
  log.Fatal("failed to read config file:", err)
 }

 var cfg Config
 if err := yaml.Unmarshal(data, &cfg); err != nil {
  log.Fatal("failed to parse config file:", err)
 }

 return cfg
}

Declaring Models

A model is a standard struct, composed of Go's basic data types, custom types that implement the Scanner and Valuer interfaces, and their pointers or aliases.

// 模型定义
type User struct {
    ID            uint           // 主键
    Name          string         // 用户名
    Email         *string        // 邮箱
    Age           uint8          // 年龄
    Birthday      *time.Time     // 生日
    MemberNumber  sql.NullString // 会员编号
    ActivedAt     sql.NullTime   // 激活时间
    CreatedAt     time.Time      // 创建时间
    UpdatedAt     time.Time      // 更新时间
}

Use sql.NullString to solve the problem of 0 or empty values not being updated.

Field Tags

When declaring a model, tags are optional. GORM supports the following tags: tags are case-insensitive, but camelCase style is recommended.

Queries

// 第一条记录，主键排序的第一条
db.First
db.Take
db.Last
db.Where("name=?","jinzhu").First(&user) // user指定找哪张表
db.Where(&user{Name:"jinzhu",Age:20}).First(&user)
//主键切片
db.Where([]int64{20,21,22}).Find(&users)

Gin (Web Framework)

go get -u github.com/gin-gonic/gin

Starting a simple application

package main

import "github.com/gin-gonic/gin"

func main() {
    r := gin.Default()

    r.GET("/ping", func(c *gin.Context) {
        c.JSON(200, gin.H{
            "message": "pong",
        })
    })

    r.Run() // listen and serve on 0.0.0.0:8080
}

package main

import "github.com/gin-gonic/gin"

func main() {

 router := gin.Default()

 // restful 的开发中
 router.GET("/someGet", getting)
 router.POST("/somePost", posting)
 router.PUT("/somePut", putting)
 router.DELETE("/someDelete", deleting)
 router.PATCH("/somePatch", patching)
 router.HEAD("/someHead", head)
 router.OPTIONS("/someOptions", options)

 // 默认启动的是 8080 端口，也可以通过 router.Run(":端口号") 自定义
 router.Run()

}

URL and Route Grouping

package main

import "github.com/gin-gonic/gin"

func main() {

 router := gin.Default()

 // Simple group: v1
 v1 := router.Group("/v1")
 {
  v1.POST("/login", loginEndpoint)
  v1.POST("/submit", submitEndpoint)
  v1.POST("/read", readEndpoint)
 }

 // Simple group: v2
 v2 := router.Group("/v2")
 {
  v2.POST("/login", loginEndpoint)
  v2.POST("/submit", submitEndpoint)
  v2.POST("/read", readEndpoint)
 }

 router.Run() // listen and serve on

}

Parameters in the URL are obtained from Param("key") in the context.

package main

import (
 "github.com/gin-gonic/gin"
 "net/http"
)

type Person struct {
 ID   int    `uri:"id" binding:"required,uuid"`
 Name string `uri:"name" binding:"required"`
}

func main() {
 r := gin.Default()

 r.GET("/ping", func(c *gin.Context) {
  c.JSON(200, gin.H{
   "message": "pong",
  })
 })

 r.GET("/user/:name/:action/", func(c *gin.Context) {
  name := c.Param("name")
  action := c.Param("action")
  c.String(http.StatusOK, "%s is %s", name, action)
 })

 r.GET("/user/:name/*action", func(c *gin.Context) {
  name := c.Param("name")
  action := c.Param("action")
  c.String(http.StatusOK, "%s is %s", name, action)
 })
//  通过struct来约束参数的取值
 r.GET("/:name/:id", func(c *gin.Context) {
  var person Person
  if err := c.ShouldBindUri(&person); err != nil {
   c.Status(http.StatusBadRequest)
  }
  c.JSON(http.StatusOK, person)
 })

 r.Run(":8082")
}

Getting Parameters from GET and POST Requests

GET

package main

import (
 "github.com/gin-gonic/gin"
 "net/http"
)

func main() {
 router := gin.Default()

 // 匹配的 URL 格式：/welcome?firstname=Jane&lastname=Doe
 router.GET("/welcome", func(c *gin.Context) {
  firstname := c.DefaultQuery("firstname", "Guest")
  lastname := c.Query("lastname") // 等价于 c.Request.URL.Query().Get("lastname")

  c.String(http.StatusOK, "Hello %s %s", firstname, lastname)
 })

  router.POST("/welcome", func(c *gin.Context) {
  firstname := c.DefaultPostForm("firstname", "Guest")
  lastname := c.PostForm("lastname") // 等价于 c.Request.URL.Query().Get("lastname")

  c.String(http.StatusOK, "Hello %s %s", firstname, lastname)
 })

 router.Run(":8080")
}

POST

package main

import (
 "github.com/gin-gonic/gin"
 "net/http"
)

func main() {
 router := gin.Default()

 // 匹配的 URL 格式：/welcome?firstname=Jane&lastname=Doe
 router.GET("/welcome", func(c *gin.Context) {
  firstname := c.DefaultQuery("firstname", "Guest")
  lastname := c.Query("lastname") // 等价于 c.Request.URL.Query().Get("lastname")

  c.JSON(http.StatusOK, gin.H{
   "firstname": firstname,
   "lastname":  lastname,
  })
 })

 router.POST("/welcome", func(c *gin.Context) {
  job := c.DefaultPostForm("job", "Guest")
  salary := c.PostForm("salary") // 等价于 c.Request.URL.Query().Get("lastname")

  //c.String(http.StatusOK, "Hello %s %s", job, salary)
  c.JSON(http.StatusOK, gin.H{
   "job":    job,
   "salary": salary,
  })

 })

 router.Run(":8083")
}

Returning JSON and Protobuf Values

package main

import (
 "github.com/gin-gonic/gin"

 "net/http"

 "GormStart/gin06/proto"
)

func main() {
 router := gin.Default()
 router.GET("/moreJSON", func(c *gin.Context) {
  var msg struct {
   Name    string `json:"user"`
   Message string
   Number  int
  }
  msg.Name = "gin"
  msg.Message = "hello"
  msg.Number = 123

  c.JSON(http.StatusOK, msg)
 })

 //protobuf
 router.GET("/moreProtoBuf", func(c *gin.Context) {
  c.ProtoBuf(http.StatusOK, &proto.Teacher{
   Name:   "gin",
   Course: []string{"go", "python"},
  })
 })

 router.Run(":8083")
}
// 返回pureJson

1. Basic Form Validation

To bind the request body to a struct, use model binding, which currently supports binding JSON, XML, YAML, and standard form values (foo=bar&boo=baz).

Gin uses go-playground/validator for parameter validation. View the full documentation.

You need to set tags on the bound fields. For example, if the binding format is JSON, you should set it as: json:"fieldname".

Additionally, Gin provides two sets of binding methods:

Must bind

• Methods: Bind, BindJSON, BindXML, BindQuery, BindYAML
• Behavior: These methods internally use MustBindWith. If a binding error occurs, the request will be aborted with the following instructions:

go
c.AbortWithError(400, err).SetType(ErrorTypeBind)

• The affected status code will be set to 400
• Content-Type will be set to text/plain; charset=utf-8
• Note: If you set the response code after this, a warning will be issued:

  [GIN-debug] [WARNING] Headers were already written. Wanted to override status code 400 with 422

• If you want more control over the behavior, please use the ShouldBind related methods.

Should bind

• Methods: ShouldBind, ShouldBindJSON, ShouldBindXML, ShouldBindQuery, ShouldBindYAML
• Behavior: These methods internally use ShouldBindWith. If a binding error occurs, an error is returned, allowing developers to properly handle the request and error.

When using binding methods, Gin infers which binder to use based on the Content-Type. If you are sure what you are binding,
you can use MustBindWith or BindingWith.
You can also specify modifiers with specific rules for fields. If a field is decorated with binding:"required",
and its value is empty during binding, an error will be returned.

Example Code (Binding JSON)

// 绑定为 json
type Login struct {
    User     string `form:"user" json:"user" xml:"user" binding:"required"`
    Password string `form:"password" json:"password" xml:"password" binding:"required"`
}

type SignUpParam struct {
    Age        uint8  `json:"age" binding:"gte=1,lte=130"`
    Name       string `json:"name" binding:"required"`
    Email      string `json:"email" binding:"required,email"`
    Password   string `json:"password" binding:"required"`
    RePassword string `json:"re_password" binding:"required,eqfield=Password"`
}

func main() {
    router := gin.Default()
    // Example for binding JSON ({"user":"manu", "password":"123"})
}

package main

import (
 "fmt"
 "github.com/gin-gonic/gin"
 "github.com/gin-gonic/gin/binding"
 "github.com/go-playground/locales/en"
 "github.com/go-playground/locales/zh"
 ut "github.com/go-playground/universal-translator"
 "github.com/go-playground/validator/v10"
 en_translator "github.com/go-playground/validator/v10/translations/en"
 zh_translator "github.com/go-playground/validator/v10/translations/zh"
 "net/http"
 "reflect"
 "strings"
)
// 绑定为 json
type LoginForm struct {
 User     string `form:"user" json:"user" xml:"user" binding:"required"`
 Password string `form:"password" json:"password" xml:"password" binding:"required"`
}
type RegisterForm struct {
 Age        uint8  `json:"age" binding:"gte=1,lte=130"`
 Name       string `json:"name" binding:"required,min=3"`
 Email      string `json:"email" binding:"required,email"`
 Password   string `json:"password" binding:"required,min=6"`
 RePassword string `json:"re_password" binding:"required,eqfield=Password"` // 跨字段了
}
var trans ut.Translator
// 翻译
func InitTrans(locale string) (err error) {
 if v, ok := binding.Validator.Engine().(*validator.Validate); ok {
  v.RegisterTagNameFunc(func(fld reflect.StructField) string {
   name := strings.SplitN(fld.Tag.Get("json"), ",", 2)[0]
   if name == "-" {
    return ""
   }
   return name
  })
  zhT := zh.New()
  enT := en.New()
  uni := ut.New(enT, zhT)
  trans, ok = uni.GetTranslator(locale)
  if !ok {
   return fmt.Errorf("locale %s not found", locale)
  }
  switch locale {
  case "en":
   en_translator.RegisterDefaultTranslations(v, trans)

主题测试文章，只做测试使用。发布者：Walker，转转请注明出处：https://www.walker-learn.xyz/archives/4774
